77mm thickness outdoor LED display P6 Thin and light for advertising with heat dissipation and high brightness
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Charming |
| Certificering: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Modelnummer: | P6.66 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 STUKS |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Carton Case, Houten Case, Flight Case |
| Levertijd: | 7 werkdagen na betaling |
| Betalingscondities: | L/C, T/T, Western Union, PayPal, Cash |
|
Gedetailleerde informatie |
|||
| LED-standaard: | SMD2727 | Helderheid (CD/㎡): | 6500cd/m ² |
|---|---|---|---|
| Kastgewicht: | 25 kg | Kijkhoek: | 140° |
| Specificaties: | 960x960mm | Onderhoudsmethode: | Onderhoud achter/voor |
| Vernieuwingsfrequentie (Hz): | 3840Hz | Scanmodus: | 1/6S |
| Markeren: | 77mm outdoor LED display P6,thin outdoor LED video wall,high brightness LED advertising display |
||
Productomschrijving
| Attribute | Value |
|---|---|
|
LED Specifications |
960x960mm |
|
Viewing distance |
>8m |
|
Screen Brightness |
≥6500 CD/㎡ |
|
LED Standard |
SMD2727 |
|
Pixel Density(Dot/㎡) |
22500 Dot/㎡ |
|
Scan Mode |
1/6S |
|
Maintenance Method |
Back/Front Maintenance |
|
Protection Level |
IP65 |
Specially designed waterproofrubber ring.multi-layer waterproofprotection, protection level up to lP65
Full front maintenance design and full rear maintenance design make installation easy and save installation space.
Split-voltage power supply design, low heat and long service life Hard connection design, high stability.
Clear picture without flicker and distortion.No light leakage trouble.
The final products feature supreme quality and offers best outputs.
High refresh rate and gray scale ensures the picture quality remains seamless.
Technology Training:
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on
Front and rear maintenance available.
Faster and easier to install
Quick maintenance for various installation environment, improve work efficiency.

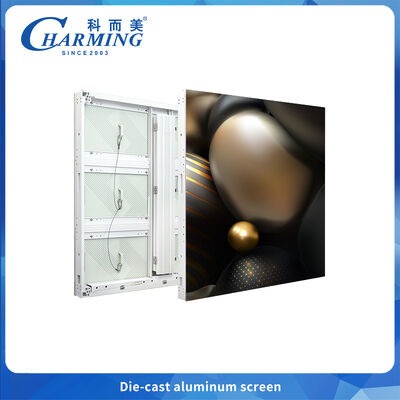

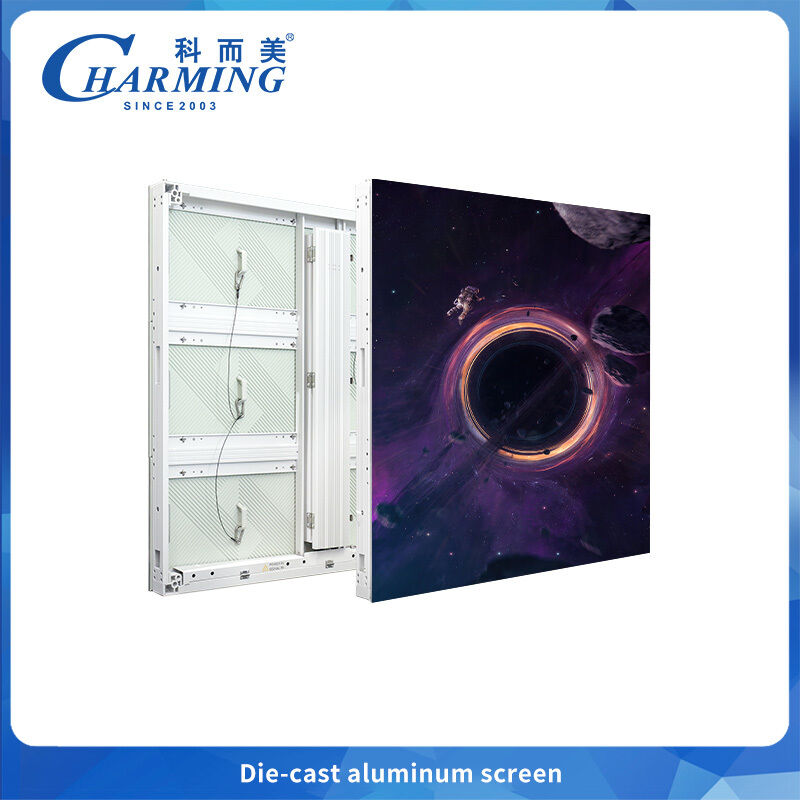

Die casting aluminum panel
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.Clear picture without flicker and distortion.No light leakage trouble.
3.The final products feature supreme quality and offers best outputs.
4.High refresh rate and gray scale ensures the picture quality remains seamless.
5. Ultra-thin cabinet, the whole cabinet is made of aluminum alloy or magnesium alloy material, Faster and easier installation.
