Outdoor P6.66 LED Digital Signage Billboard and Displays for Building Advertising LED Screen Outdoor Display China Factory Direct
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Charmingled |
| Certificering: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Modelnummer: | P6.66 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 10 STUKS |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Carton Case, Houten Case, Flight Case |
| Levertijd: | 30 werkdagen na betaling |
| Betalingscondities: | L/C,T/T,Western Union,Paypel,Contant geld |
| Levering vermogen: | 1000 stuks per week |
|
Gedetailleerde informatie |
|||
| Kijkafstand: | >8m | Grijsschaal: | 14 bit |
|---|---|---|---|
| Omgevings-: | Openlucht | IP-beoordeling: | IP65 |
| Kastgewicht: | 25 kg | Pixelafstand: | 6.66mm |
| Markeren: | P6.66 LED digital signage billboard,outdoor LED screen for building advertising,factory direct LED video wall display |
||
Productomschrijving

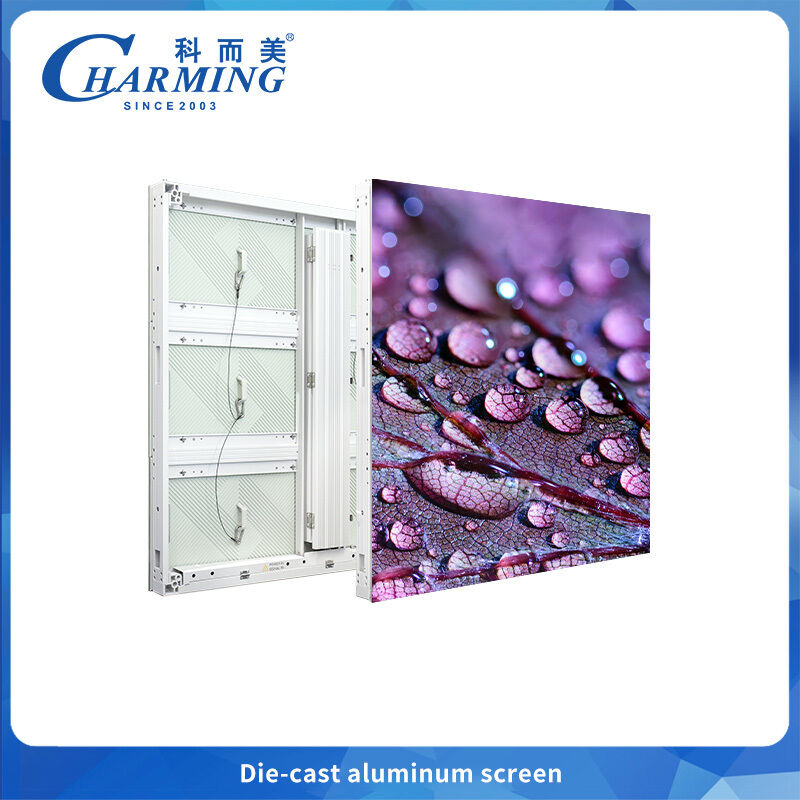

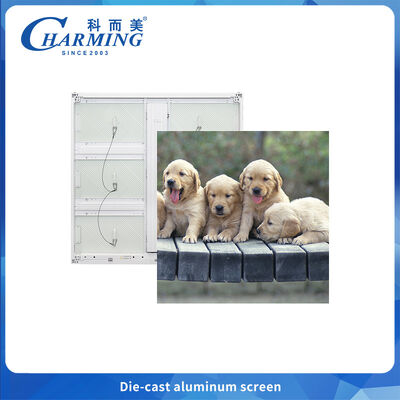

Outdoor P6.66 LED Digital Signage Billboard and Displays for Building Advertising LED Screen Outdoor Display China Factory Direct
Product Advantages:
- Superior Protection
- IP65 waterproof rating, special rubber ring and all-aluminum fireproof base design, fearless of wind and rain, eliminating potential hazards.
- Stable and Energy-Saving
- All-aluminum textured heat dissipation, voltage divider power supply, maximum power consumption only 650W/㎡, stable operation and lower energy consumption.
- High Brightness Display
- Tens of thousands of brightness (>6500cd/㎡), clear picture and rich colors even under direct sunlight.
- Easy Installation
- Front and rear maintenance, slim cabinet (thinnest 77mm), concealed wiring, saving significant installation and transportation costs.
- Pure Image Quality
- Innovative mask design effectively improves contrast, eliminates modularity, and delivers excellent detail.
- Flexible Applications
- Supports curved corner splicing to achieve 3D display effects, suitable for various scenarios such as advertising, sports, and commercial centers.
Product Parameters
| Parameters | P6.66 |
|---|---|
| LED Configuration | SMD2727 |
| Pixel Density (Dot/m²) | 22500 |
| Module Size | 480×320mm |
| Cabinet Size | 960×960×77mm |
| Cabinet Weight | 25kg |
| Protection Level (Front/Rear) | IP65 |
| Brightness | ≥5500 cd/m² |
| Best Viewing Distance | >8m |
| Gray Scale | 14bit |
| Refresh Rate | ≥3840Hz |
| Operating Life | 100,000 hours |
Company Introduction
Charming Co., ltd has always been committed to technical innovation and service of global entertainment lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainment applications, and continues to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 22 years.
Quality Assurance & Support
✅ 2-Year Full Warranty – Free replacement or repair for any defective displays, modules, or parts.
✅ Lifetime Maintenance – Only material costs apply after the warranty period.
✅ Free Technical Training – Includes hands-on operation & maintenance training at our factory.
✅ Comprehensive Documentation – Operation manuals, software, test reports, CAD drawings, and expert guidance provided.
Your success is our priority—let’s build something brilliant together!
Provide
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We provide the operation manual, software, test report and so on.
3. We can also provide all kinds of certification such as CE, UL and so on
FAQ:
1: Can I order LED screen samples?
Welcome to order both LED modules and complete screens for quality testing.
2: What's the delivery time?
1-5 days for modules, within 15 working days for screens under 100㎡.
3: Warranty policy?
1-year product warranty provided.
4: After-sales service?
Professional team + hotline + 24/7 online support.
5: Custom sizes available?
Depends on module and cabinet dimensions.
6: Installation guidance?
Provide drawings or TeamViewer remote assistance.
7: How to order?
Please specify screen size and application scenario.
8: Shipping methods?
Air/sea available, recommend cost-effective sea freight.
9: Payment options?
Accept TT/Western Union, recommend Ali Trade Assurance.
