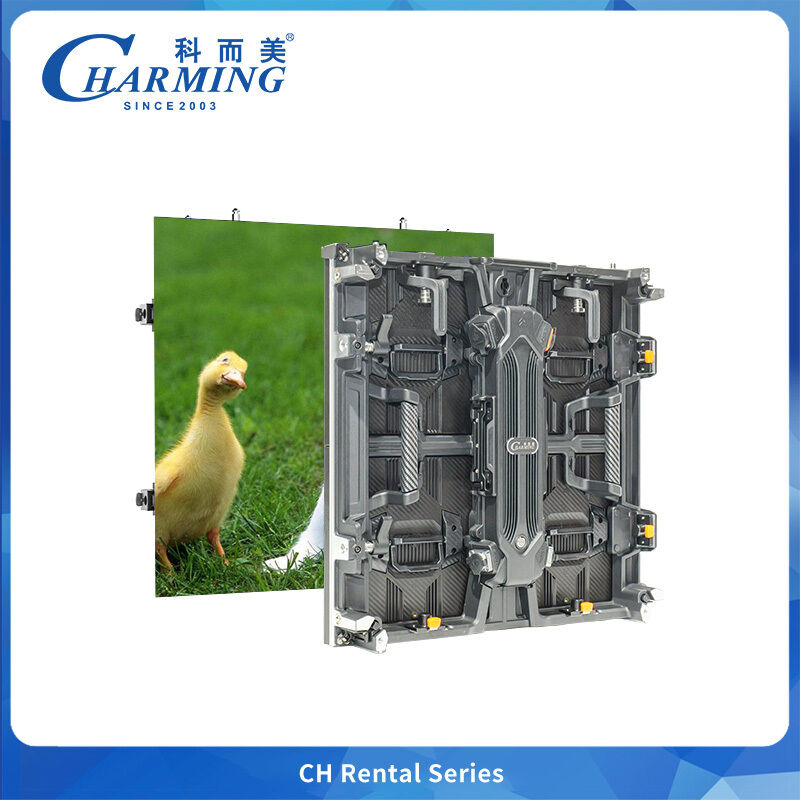

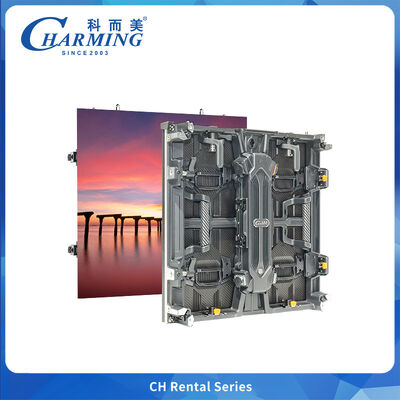

CH-H Series Curved Indoor LED Video Wall with Circular Splicing for Immersive Stage Design
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | CHARMING |
| Certificering: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Modelnummer: | P2.604 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Kartonnen behuizing, houten kist, flightcase |
| Levertijd: | 30 werkdagen na betaling |
| Betalingscondities: | T/T,L/C,Western Union,Paypal,Contant geld |
| Levering vermogen: | 500 stuks per week |
|
Gedetailleerde informatie |
|||
| Pixeldichtheid: | 147456 | Grijs niveau: | 14-16 bit |
|---|---|---|---|
| Hoek bekijken: | 140° | Dimensie: | 500x500x84mm |
| Werktemperatuur: | -20 ~ 40 ℃ | Kabelnetmateriaal: | met een breedte van niet meer dan 50 mm |
| Markeren: | curved indoor LED video wall,circular splicing LED display,rental LED display for stage |
||
Productomschrijving
| Pixel Pitch | 2.604mm |
| Cabinet Weight | 7.9 kg |
| View angle | 140° |
| Refresh rate | 7680Hz |
| Max.Power | 100W |
| Brightness | 600-800CD/㎡ |
-
Maximum outer curvature 10° with 36 cabinets forming a complete circle.
-
Maximum inner curvature 15° with 24 cabinets forming a full circle of 5.8m diameter.
-
45° beveled cabinet design with accessory lock replacement for varied installation needs.
-
Dedicated curved lock for arc splicing and straight edge lock for flat splicing.
-
Operating temperature -20~40℃ with 10%~65%RH humidity and ≥50000 hours lifespan.
![]()
![]()
![]()
![]()
