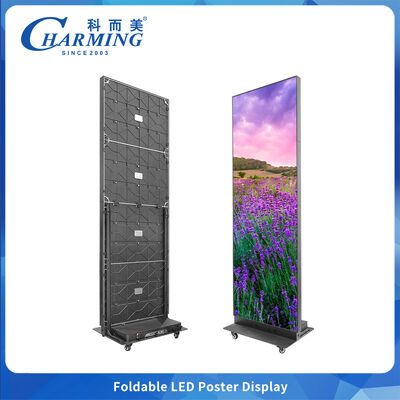

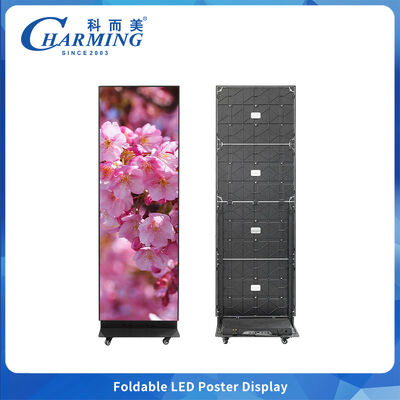

High Refresh Rate LED Video Wall Display with Aluminum Alloy Foldable Poster Screen and Intelligent Mobile Control for Engaging Digital Content
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Charming |
| Certificering: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Modelnummer: | P1.86 P2 P2.5 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 2 stuks |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Kartonnen behuizing, houten kist, flightcase |
| Levertijd: | 10 werkdagen na betaling |
| Betalingscondities: | L/C, T/T, Western Union, PayPal, Cash |
| Levering vermogen: | 500 pc's per week |
|
Gedetailleerde informatie |
|||
| Hoek bekijken: | 140° | Beschermingsniveau: | IP43 |
|---|---|---|---|
| Kabelnetmateriaal: | Aluminiumlegering | Onderhoudsmethode: | Voorste onderhoud |
| Grijs niveau: | 14-16 bit | Werktemperatuur: | -20 tot 40°C |
| Werkvochtigheid: | 10% tot 65% RH | Werkspanning: | AC220V,50/60HZ |
| Markeren: | foldable LED video wall display,aluminum alloy LED display,mobile control video wall |
||
Productomschrijving
High Refresh Rate LED Video Wall Display with Aluminum Alloy Foldable Poster Screen and Intelligent Mobile Control for Engaging Digital Content
| Type Number | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension (mm) | 657*2075*490mm | ||
| Pixel Pitch (mm) | 1.86mm | 2mm | 2.5mm |
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Pixel Density (dot/m) | 288,906 | 202,500 | 160,000 |
| Max. Power (W) | 600W | ||
| Cabinet Weight (kg) | 48.8kg | ||
| Refresh Rate (Hz) | 7680Hz | ||
| Brightness (CD/m²) | 600 | 600 | 800 |
Product Features
- High Refresh Rate - Delivers smooth, flicker-free video playback
- GOB Technology - Protection for enhanced durability and reliability
- Intelligent Mobile Control - Easy operation and management via mobile devices
Other detail:
Installation Process
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the cabinet
- Identify power cables and signal cables, then insert them into the corresponding cabinet connections
- Connect the main signal cable and main power cable to the computer and controller, then complete screen setup after debugging
Packaging Options
We offer multiple packaging solutions including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transportation.
Our Team Spirit
