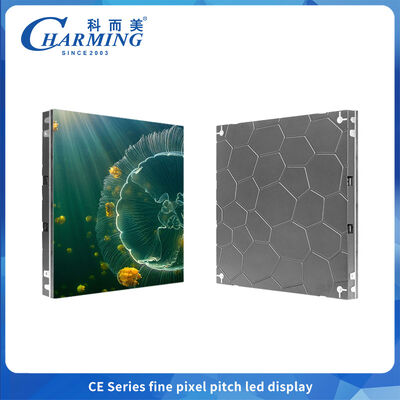

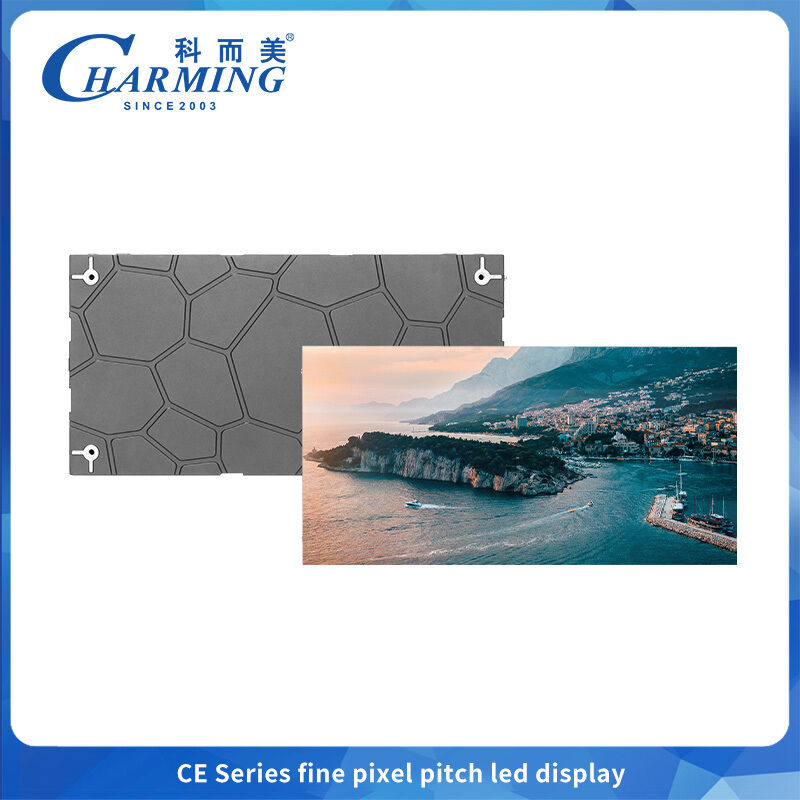

Indoor Small Pixel Pitch P1.86mm Fixed Display Cabinet LED Video Wall Panel Indoor Fixed LED Screen
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Charmingled |
| Certificering: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Modelnummer: | P1.86 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 10 stuks |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Carton Case, Houten Case, Flight Case |
| Levertijd: | 30 werkdagen na betaling |
| Betalingscondities: | L/C,T/T,Western Union,Paypel,Contant geld |
| Levering vermogen: | 300 stuks per week |
|
Gedetailleerde informatie |
|||
| Kastgewicht (kg): | 6,1 kg | Vernieuwingsfrequentie (Hz): | 7680 Hz |
|---|---|---|---|
| Helderheid (cd/m²): | 600 cd/m2 | Hoek bekijken: | 140° |
| Werktemperatuur: | -20 ~ 40 ℃ | Werkvochtigheid: | 10% tot 65% RH |
| Markeren: | P1.86mm indoor LED video wall,fixed LED display cabinet,small pixel pitch LED screen |
||
Productomschrijving
Indoor Small Pixel Pitch P1.86mm Fixed Display Cabinet LED Video Wall Panel Indoor Fixed LED Screen
Product Advantages:
Our aluminum alloy display cabinets offer the ideal solution for space-conscious, permanent indoor installations.
Core Benefits:
Easy Front Maintenance: Modular magnetic panels allow servicing from the front—no rear clearance needed.
Saves Critical Space: Mounts directly to the wall, preserving your valuable floor area.
Adapts to Your Space: Mix and match cabinet sizes for a seamless fit on any wall.
Simplifies Inventory: One cabinet design supports various 320x160 pixel pitch modules.
Ensures Flawless Viewing: Flexible connections guarantee stable splicing and a continuous visual experience.
Built to Last: High-quality aluminum alloy construction provides durability and excellent heat dissipation for years of reliable operation.
Product Parameters
|
Type Number |
R1.86-320x480 |
R1.86-320x640 |
R1.86-640x480 |
R1.86-640x640 |
|
Dimension(mm) |
320x480x61mm |
320x640x61mm |
640x480x61mm |
640x640x61mm |
|
Cabinet Weight(kg) |
3.5kg |
4.5kg |
6.1kg |
8kg |
|
Refresh rate(Hz) |
7680Hz |
7680Hz |
7680Hz |
7680Hz |
|
Brightness(CD/m²) |
600CD/m² |
600CD/m² |
600CD/m² |
600CD/m² |
|
View angle |
140° |
140° |
140° |
140° |
|
Maintenance Method |
Front maintenance |
Front maintenance |
Front maintenance |
Front maintenance |
Company Introduction
Charming Co., Ltd. is driven by a singular mission: to innovate and excel in entertainment lighting and LED technology for global stages.
As the pioneer behind the world's first entertainment-specific LED display (2003), we didn't just enter the market—we defined it. Today, Charming is synonymous with customer satisfaction and cutting-edge performance in China's entertainment tech industry.
With nearly 100 patents and key certifications (ISO9001, CE, CCC, etc.), our innovation is both creative and credible. "Charming Achieves Brilliance" is more than a motto; it's the standard in our fully automated, globally-compliant production facility.
From our 10,000+ sqm hub, we've powered spectacular experiences in over 150 countries for 20+ years. We don't just make products; we deliver the brilliance that captivates audiences worldwide.
Partnership & Peace of Mind: Our Commitment to You
Beyond the sale, our support ensures your investment performs brilliantly for years to come.
✅ 2-Year Full Warranty: Relax with complete protection. We cover all repair or replacement costs for any product defects.
✅ Lifetime Maintenance: Support never ends. After the warranty, you pay only for needed parts, not service.
✅ Free Expert Training: Get confident and skilled. We provide hands-on technical training at our center at no cost.
✅ All-In-One Documentation: Hit the ground running. Receive a full kit with manuals, software, drawings, reports, and professional guidance.
Your success drives us. Let's achieve excellence—together.
Enabling Your Success
We empower your team with the knowledge, tools, and credentials needed for seamless operation.
✅ On-Site Expert Training: Gain practical skills through free, hands-on training at our factory, covering both daily operation and maintenance procedures.
✅ Full Technical Documentation: Receive a complete package including user manuals, proprietary software, test reports, and essential guides.
✅ Global Compliance Support: Request and obtain key international certifications—including CE, UL, and others—to meet your market requirements.
